REBAR not enabling

[CharlesCharalambous233]

So after my own personal build suffered a mobo failure I decided to buy a prebuilt as I have too much going on in my life right now to get my old build up and running.

I got a 13700k setup with gigabyte Z790 aorus master and re4 crashed on main menu the first boot, and exoprimal has crashed multiple times. I did carry over my old nvme drive windows install so I updated all mobo drivers and have now jsut reinstalled the gpu driver.

What I have noticed is on this rig rebar will not enable. MY GPU has the BIOS to support it and my old rig used rebar, but this rig does not use rebar even though it is enabled in the bios.

Any ideas?



[CharlesCharalambous233]

So I got my new rig 13700k, gigabyte aorus master. I moved over the RAM from my old 13700k personal build, which is cosair vengence 32GB DD5 7200MHZ CL34 and I am getting constant crashes in games. Before my personal build motherboard went haywire it was smooth as a whistle no crashes whatsoever, 100% stable.



[BlessedSquirrel]

Hiya, is this a pcspecialist system? Can you post your full specs from the order page?



[CharlesCharalambous233]

Hiya, is this a pcspecialist system? Can you post your full specs from the order page?

Hi it is indeed.

I've had days gone running for an hour going to leave it idle running now for another 50 Mins or so. Exoprimal is crashing constantly. For some reason my GPU reaches like 71c which is still safe vs its usual 65 in my old case with worse airflow...

It would be great to get rebar working and see if anyone else is getting a lot of crashes in exoprimal.

I'm going to have to cut a ton of cable ties tomorrow to remove the side fan panel to install my HDD and route another cable for a 4080 FE coming tomorrow.

Case	CORSAIR iCUE 5000T RGB MID TOWER GAMING CASE
Processor (CPU)	Intel® Core™ i7 16-Core Processor i7-13700K (Up to 5.4GHz) 30MB Cache
Motherboard	GIGABYTE Z790 AORUS MASTER (LGA1700, DDR5, USB 3.2, PCIe 5.0, WIFI6E) - ARGB Ready
Memory (RAM)	16GB PCS PRO DDR5 4800MHz (2 x 8GB)
Graphics Card	INTEGRATED GRAPHICS ACCELERATOR (GPU)

Graphics Card Support Bracket	PCS GRAPHICS CARD SUPPORT BRACKET
1st M.2 SSD Drive	NOT REQUIRED
1st Storage Drive	1TB SEAGATE BARRACUDA SATA-III 3.5" HDD, 6GB/s, 7200RPM, 64MB CACHE
DVD/BLU-RAY Drive	NOT REQUIRED
Power Supply	CORSAIR 1200W HX SERIES™ MODULAR 80 PLUS® PLATINUM, ULTRA QUIET
Power Cable	1 x 1.5 Metre UK Power Cable (Kettle Lead, 1.0mm Core)
Processor Cooling	CORSAIR iCUE H150i ELITE CAPELLIX XT RGB High Performance CPU Cooler
Thermal Paste	STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
Extra Case Fans	1 x 120mm Thermaltake TOUGHFAN 12 Case Fan Change to: 3 x Corsair AF120 RGB ELITE PWM Fan + Controller Kit

Power Cable	1 x 1.5 Metre UK Power Cable (Kettle Lead, 1.0mm Core)
Processor Cooling	CORSAIR iCUE H150i ELITE CAPELLIX XT RGB High Performance CPU Cooler
Thermal Paste	STANDARD THERMAL PASTE FOR SUFFICIENT COOLING
Extra Case Fans	1 x 120mm Thermaltake TOUGHFAN 12 Case Fan Change to: 3 x Corsair AF120 RGB ELITE PWM Fan + Controller Kit
Sound Card	ONBOARD 6 CHANNEL (5.1) HIGH DEF AUDIO (AS STANDARD)
Network Card	ONBOARD LAN PORT
Wireless Network Card	NOT REQUIRED
USB/Thunderbolt Options	MIN. 2 x USB 3.0 & 2 x USB 2.0 PORTS @ BACK PANEL + MIN. 2 FRONT PORTS



[BlessedSquirrel]

Well the hardware is well balanced, and the RAM speed is certainly supported by the board at 1.4 or 1.45V

It may be worth running a Memtest86 run overnight, see if it catches any errors.

Regarding REBAR, which BIOS is the board on? You can check within windows from "system information", I notice that the 3rd BIOS revision listed currently specifically mentions improved REBAR support with over 4Gb VRAM



[CharlesCharalambous233]

Well the hardware is well balanced, and the RAM speed is certainly supported by the board at 1.4 or 1.45V

It may be worth running a Memtest86 run overnight, see if it catches any errors.

Regarding REBAR, which BIOS is the board on? You can check within windows from "system information", I notice that the 3rd BIOS revision listed currently specifically mentions improved REBAR support with over 4Gb VRAM

Days gone has just crashed just under 2 hours of game time...

Bios is on F8



[BlessedSquirrel]

Days gone has just crashed just under 2 hours of game time...

Bios is on F8

Can you post a screenshot of the optional updates page?



[CharlesCharalambous233]

Well the hardware is well balanced, and the RAM speed is certainly supported by the board at 1.4 or 1.45V

It may be worth running a Memtest86 run overnight, see if it catches any errors.

Regarding REBAR, which BIOS is the board on? You can check within windows from "system information", I notice that the 3rd BIOS revision listed currently specifically mentions improved REBAR support with over 4Gb VRAM

For some bizarre reason the PC won't boot into memtest86 after burning a bootable USB...



[CharlesCharalambous233]

Can you post a screenshot of the optional updates page?

Optional updates page from where sorry



[BlessedSquirrel]

Optional updates page from where sorry

just type it into search, should come up as "view optional updates", it's part of windows update



[CharlesCharalambous233]

OK the PC is also booting a bit weird now. All the lgihts flicker once before bios splash screen, takes a lot longer to get there...



[CharlesCharalambous233]



[CharlesCharalambous233]

Returnal keeps on crashing within 5 seconds... Yea this is not what I envisioned...



[BlessedSquirrel]

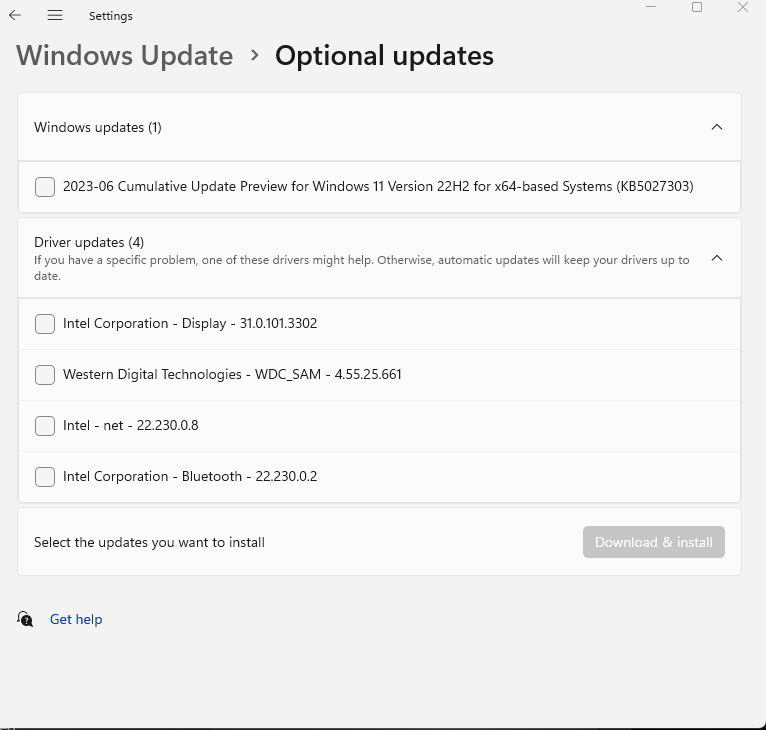

View attachment 37701

You need to install all those.

And I take it all windows updates have been installed?

Are you running any 3rd party AV?

At this point, I think we need to enlist the BSOD Doctor @ubuysa for his guidance.

Can you go through this and gather the required files, then put them in cloud storage and post a link? He's normally on in the morning sometime

When you're seeking help with a BSOD

Don't Panic! Many people panic when they get a BOSD, partly this is because they happen unexpectedly and because they usually happen without warning, but also because many believe they mean you have a hardware problem. The good news is that in the majority of cases a BSOD is a software problem...

www.pcspecialist.co.uk



[CharlesCharalambous233]

Can do later, thing is I'm not getting a bsod. The games are simply crashing that is it.



[BlessedSquirrel]

Can do later, thing is I'm not getting a bsod. The games are simply crashing that is it.

It's ok, the logs and stuff will cover that too.



[BlessedSquirrel]

I did carry over my old nvme drive windows install so I updated all mobo drivers and have now jsut reinstalled the gpu driver.

Hold on, I just notice this, did you not do a clean install, just transferred your windows drive from a different computer?



[CharlesCharalambous233]

I've noticed some memory settings in the bios, low latency, high bandwidth and auto something. I've disabled low latency and the auto something (too tired to remember it's name). Returnals actually ran for like 5 minutes now. Going to leave it running over night



[BlessedSquirrel]

Hold on, I just notice this, did you not do a clean install, just transferred your windows drive from a different computer?



[CharlesCharalambous233]

Hold on, I just notice this, did you not do a clean install, just transferred your windows drive from a different computer?

Yep done it with my swap from my old personal build to new personal build, my other friends in tech have also been doing for years. Never had any issues.

I'm actually talking to a friend ATM who had a Xeon rig and upgraded to a 10th gen i5 still using the same disk with the same windows build. Been doing it for 1 year now.
